Oil Pump: Installation

Install the oil pump to bracket.
Tightening torque: 15.7 N.m (1.6 kgf-m, 11.6 ft-lb)

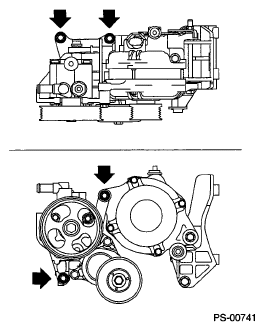

Fig 1: Locating Bolts On Front Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 36.8 N.m (3.8 kgf-m, 27.1 ft-lb)

Fig 2: Locating Bolt On Rear Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Install the power steering pump bracket.
Tightening torque: Refer to OIL PUMP , COMPONENT, General Description.

Fig 3: Locating Installation Bolt Of Power Steering Pump Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the pressure hose and suction hose.
Tightening torque:

Eye bolt 40 N.m (4.1 kgf-m, 29.5 ft-lb)

CAUTION: Be careful when installing; If the hose is twisted it may come into contact with other parts.

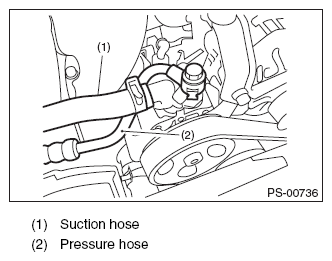

Fig 4: Identifying Pressure Hose And Suction Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the power steering oil pressure switch.
After installing the oil pump, fill the oil pump with fluid while rotating the pulley by hand and bleed the air from the oil pump.
CAUTION: Always fill the oil pump with the fluid to prevent abnormal noise and seizure of the oil pump.
Install the tensioner adjuster.
Install the V-belts.
Install the cover of the pulley belt.
Connect the ground cable to battery.
Pour the specified power steering fluid. Refer to Power Steering Fluid .

CAUTION: Never start the engine before filling with fluid; otherwise the vane pump may become seized.
