ATF Temperature Sensor

This temperature sensor uses thermistor and is installed on the control valve body. The ATF temperature sensor detects the ATF temperature and outputs it as electrical resistance signal.

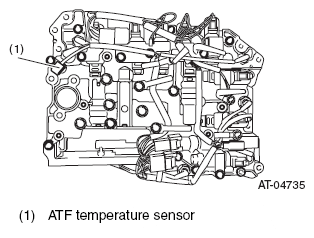

Fig 1: Identifying ATF Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
