Automatic Transmission - Mechanism & Function (5AT)
>>
Gear Train
>>
Operation
>>
Operation Table
Operation Table

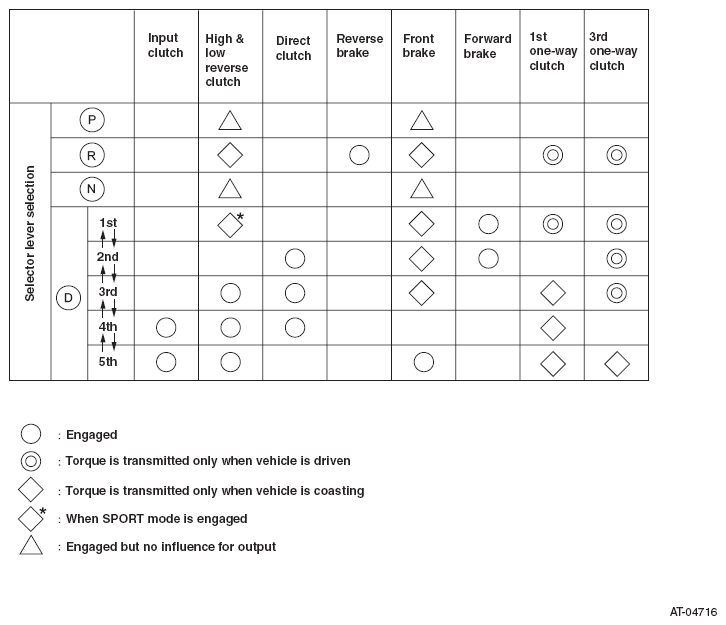

Fig 1: Gear Train Operation Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
