AT Shift Lock Control System: Wiring Diagram

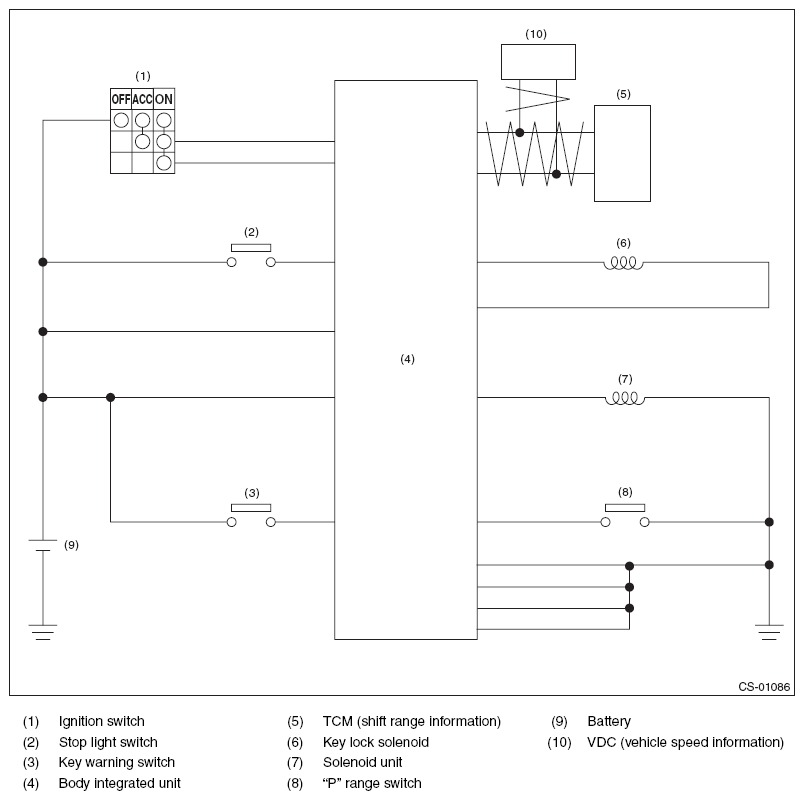

Fig 1: Stop Light Switch - Wiring Diagram

G07913083

Courtesy of SUBARU OF AMERICA, INC.
