Timer Diagnosis: Notes

Start the count up operation of counters in ECM and in soaking timer IC when the engine is started. Judge as timer malfunction if the difference between the counter in ECM and counter in soaking timer IC exceeds the allowable limit when the ignition switch is OFF.

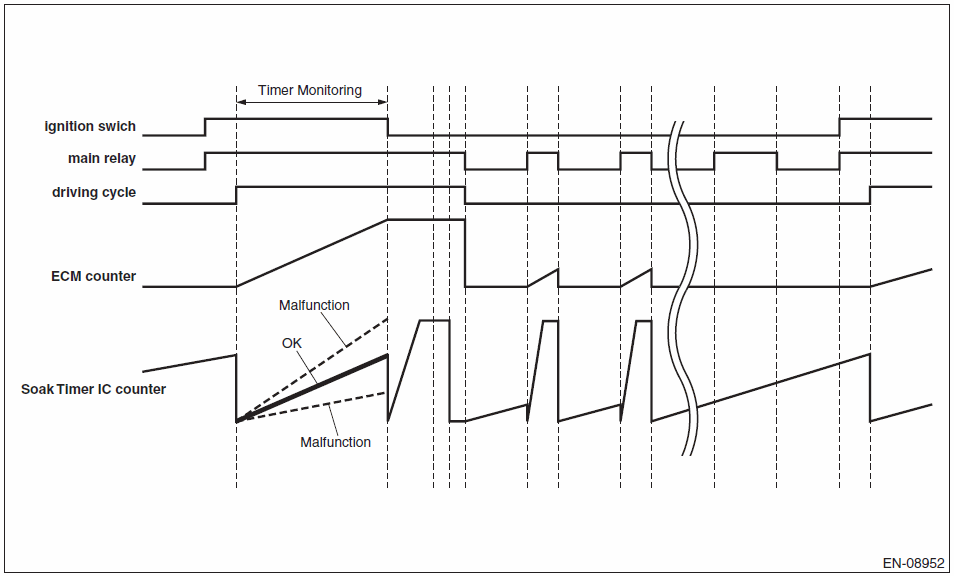

Fig 1: Timer Diagnosis Graph

Courtesy of SUBARU OF AMERICA, INC.
