Diagnostic Trouble Code (DTC) Detecting Criteria (H6DO)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P2103 Throttle Actuator Control Motor Circuit High
>>
Component Description
Component Description

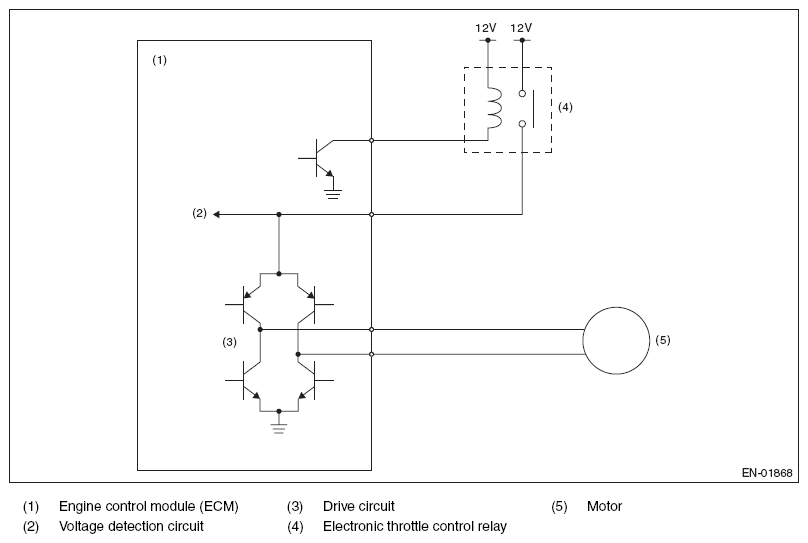

Fig 1: Throttle Actuator Control Motor Circuit Diagram (High)
Courtesy of SUBARU OF AMERICA, INC.
