Component Description

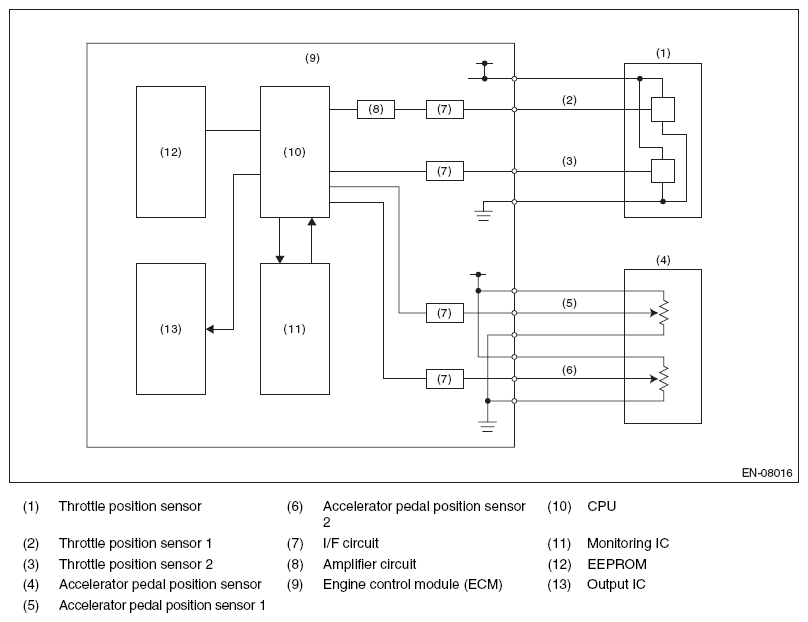

Fig 1: Throttle Control System Circuit Diagram

G07913047

Courtesy of SUBARU OF AMERICA, INC.
