Purge control solenoid valve Open Fixation

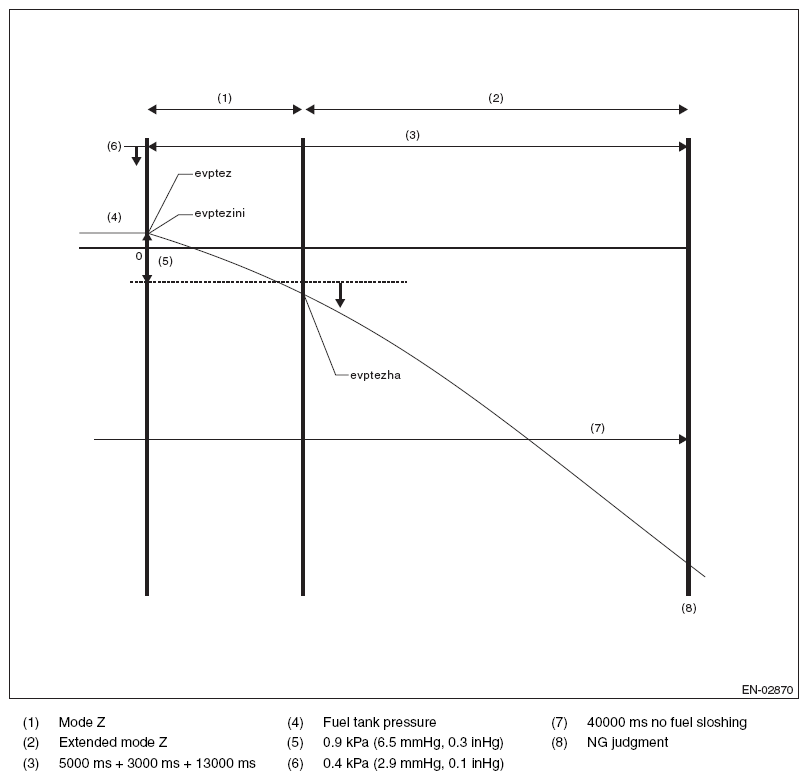

Fig 1: Fuel Tank Pressure Chart (Purge Control Solenoid Valve Open Fixation)

Courtesy of SUBARU OF AMERICA, INC.

• evptezini ≤ 0.4 kPa (2.9 mmHg, 0.1 inHg)
• evptez - evptezha > 0.9 kPa (6.5 mmHg, 0.3 inHg)
• No fuel sloshing equal to or over the value of Map 6 for 40000 ms or more

Judge as abnormal when all are established.
