120° Interval Difference Method

Diagnostic value domg 120 = (omg 1 - omg 0) - (omg 7 - omg 1)/6
Judge as a misfire in the following cases.
  • domg 120 > judgment value of positive side
  • domg 121 ≤ judgment value of negative side

(Judgment value before 120° CA)

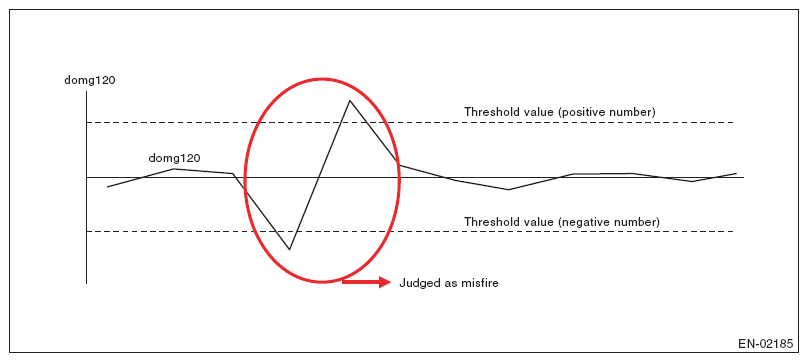

Fig 1: Crankshaft Position Speed Graph - 120° Interval Difference Method
G07925993Courtesy of SUBARU OF AMERICA, INC.
