Diagnostic Method 2

Detect the malfunction by the cumulative value obtained from the amount of variation in λ change.

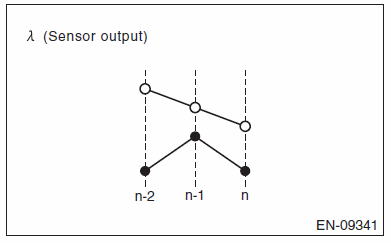

Fig 1: Sensor Output Illustration

Courtesy of SUBARU OF AMERICA, INC.

• Abnormality Judgment

  Judge as NG when the following conditions are established.

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value	DTC
  Cumulative value obtained from the amount of variation in λ change Σ |(lambda(n) - lambda(n-1)) - (lambda(n-1) - lambda(n-2))	< Value from Map	P014C, P014D, P014E and P014F

  MAP (BIN5 MODEL) CHART



  Cumulative value obtained from the amount of variation in λ Σ lambda(n) - lambda(n-1)	0.30	2.00
  Cumulative value obtained from the amount of variation in λ change	0.80	1.50

  MAP (ULEV MODEL) CHART



  Cumulative value obtained from the amount of variation in λ Σ lambda(n) - lambda(n-1)	0.30	1.20
  Cumulative value obtained from the amount of variation in λ change	0.80	1.00

  Time Needed for Diagnosis:  90 seconds

  Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

  Judge as OK and clear the NG if the following conditions are established.

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value	DTC
  Cumulative value obtained from the amount of variation in λ change Σ(lambda(n) - lambda(n-1)) - (lambda(n-1) - lambda(n-2))	≥ Value from Map	P014C, P014D, P014E and P014F

  Time Needed for Diagnosis:  90 seconds
