Component Description

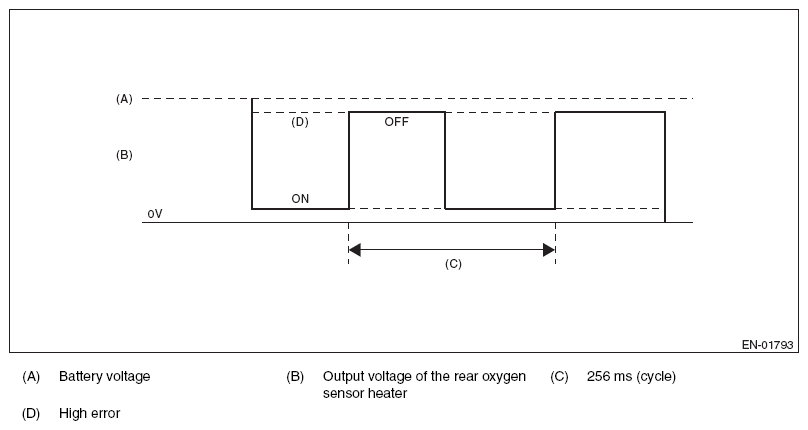

Fig 1: Rear Oxygen Sensor Heater Voltage Output Graph (Bank 1 Sensor 2)
G07912978Courtesy of SUBARU OF AMERICA, INC.
