General Description
>>
Components With Torque Specifications
>>
Front Disc Brake
Front Disc Brake

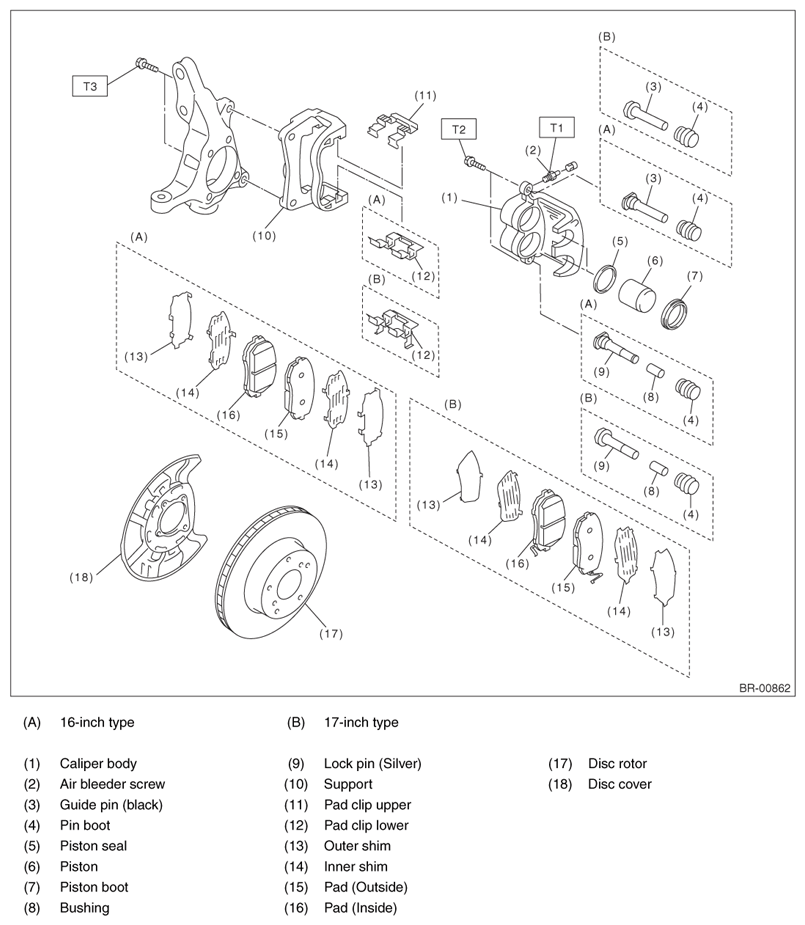

Fig 1: Exploded View Of Front Disc Brake
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.82, 5.9)
T2: 27 (2.75, 19.9)
T3: 120 (12.24, 88.5)
Courtesy of SUBARU OF AMERICA, INC.
