Indicator ASSY

  1. Disconnect the harness connector from the console front cover assembly.

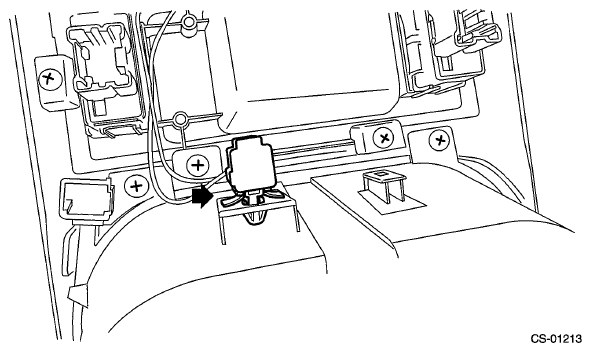

    Fig 1: Locating Harness Connector Of Console Front Cover Assembly
    G06651741Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the four screws and remove the indicator assembly from the console front cover assembly.

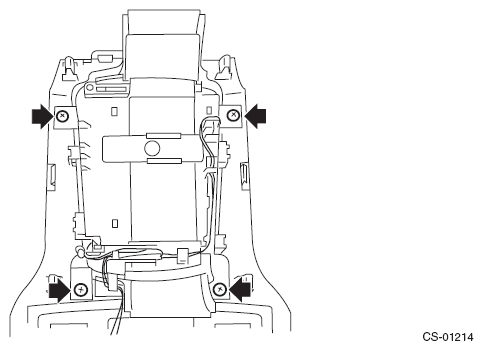

    Fig 2: Locating Console Front Cover Assembly Screws
    G07913124Courtesy of SUBARU OF AMERICA, INC.
