Grip ASSY

  1. Remove the cover grip AT.

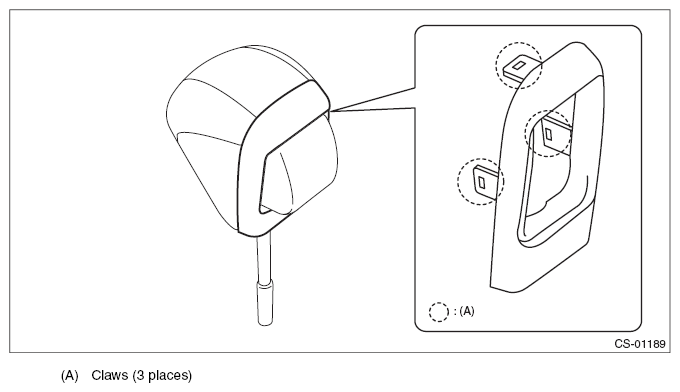

    Fig 1: Identifying Cover Grip Claws
    G07913105Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the button assembly-AT.
    Fig 2: Removing Button Assembly-AT
    G07913106Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rod COMPL.
