Solenoid Unit

Remove the AT select lever. Refer to , REMOVAL , Select Lever.
Remove the spacer and gasket. Refer to , DISASSEMBLY , Select Lever.
Using a flat tip screwdriver with a thin tip, remove the harness connector from the plate COMPL.

Fig 1: Locating Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw using a flat tip screwdriver with a thin tip, and remove the solenoid unit from the plate COMPL.

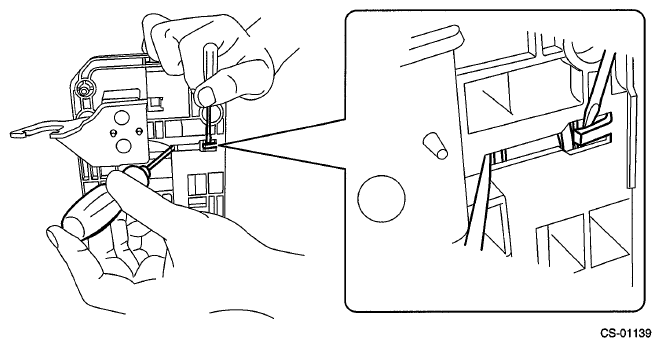

Fig 2: Raising Claw Using Flat Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Using a flat tip screwdriver with a thin tip, remove the solenoid unit terminals from the harness connector.

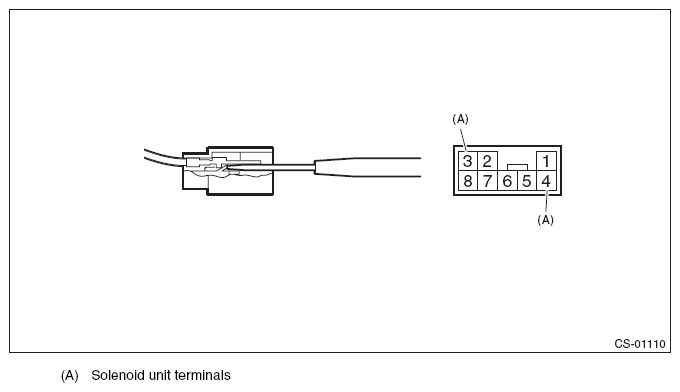

Fig 3: Removing Solenoid Unit Terminals From Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
