AT Shift Lock Solenoid and "P" Range Switch: Installation

Install in the reverse order of removal.

NOTE: Insert the solenoid unit terminals to the harness connector.

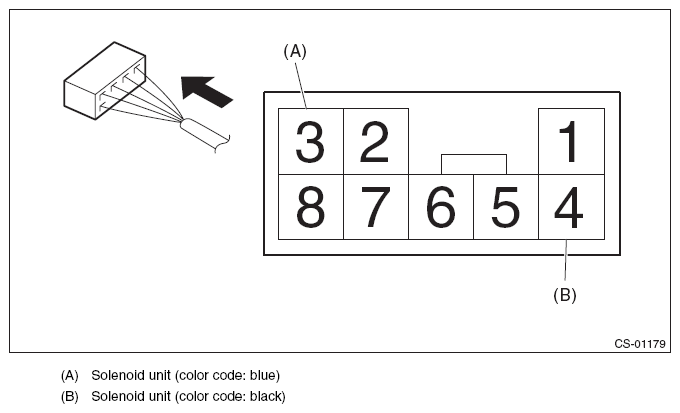

Fig 1: Inserting Solenoid Unit Terminals To Harness Connector
G07913148Courtesy of SUBARU OF AMERICA, INC.
