Transfer Driven Gear: Removal

  1. Remove the manual transmission assembly from the vehicle. Refer to Manual Transmission Assembly  .
  2. Remove the back-up light switch neutral position switch. Refer to Switches and Harness  .
  3. Remove the transfer case together with the extension case assembly. Refer to Transfer Case and Extension Case Assembly  .
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear.
    Fig 1: Identifying Transfer Driven Gear
    G06652310Courtesy of SUBARU OF AMERICA, INC.
  6. Remove bearing outer races from the extension case and transfer case.

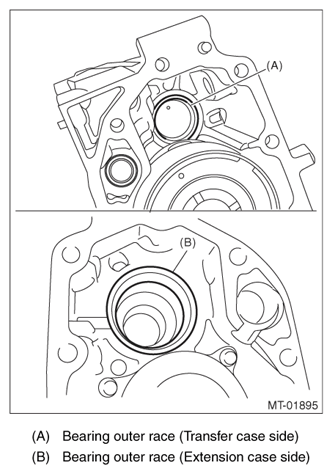

    Fig 2: Identifying Bearing Outer Races (Transfer Case Side)
    G07915108Courtesy of SUBARU OF AMERICA, INC.
