Shifter Fork And Shifter Rod

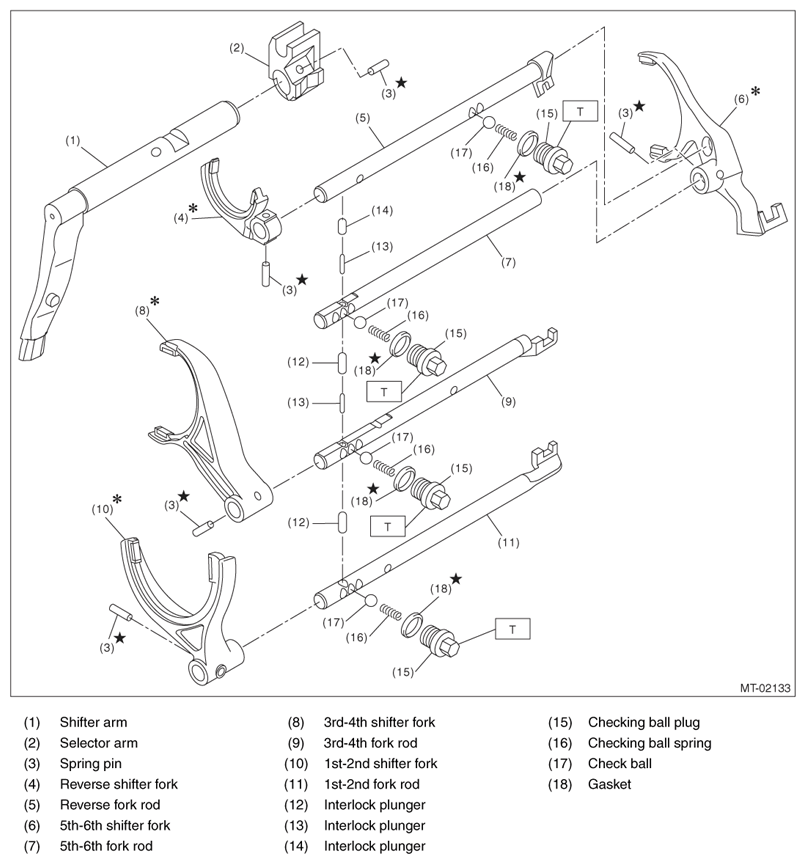

Fig 1: Exploded View Of Shifter Fork And Shifter Rod
G07914974Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 20 (2.0, 14.8)
