Clutch Fluid: Inspection

  1. Park the vehicle on a level surface.
  2. Check the clutch fluid level using the scale on the outside of the reservoir tank. If the clutch fluid level is below "MIN", fill the clutch fluid up to "MAX" level, and make sure that there is no leakage.

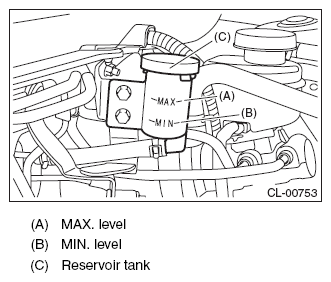

Fig 1: Identifying Clutch Fluid Level
G07913883Courtesy of SUBARU OF AMERICA, INC.
