Clutch System - Mechanism & Function
>>
Clutch
>>
Turbo Models
Turbo Models

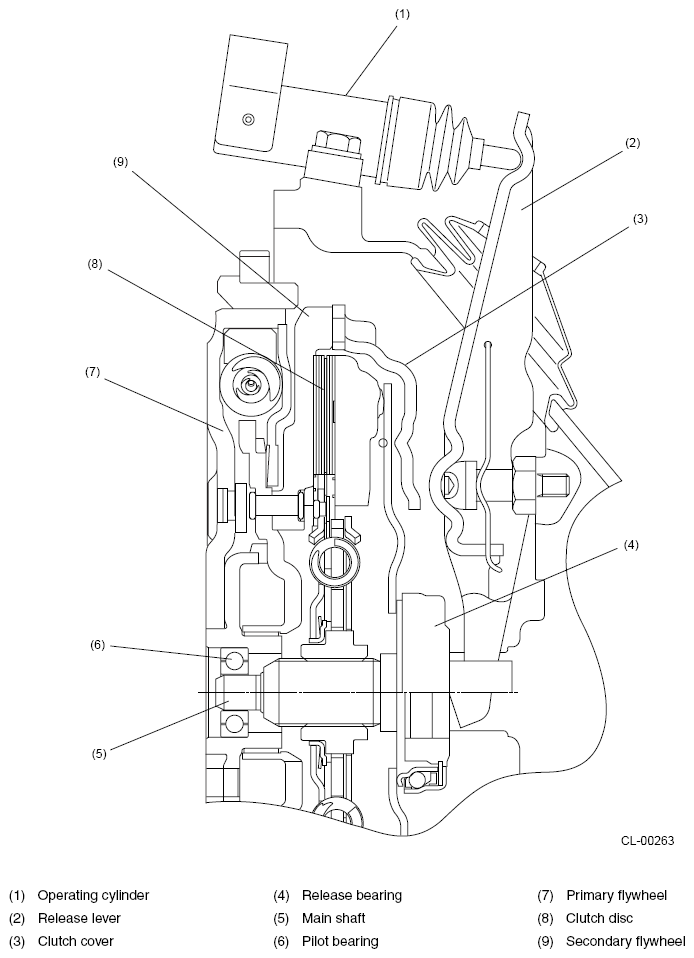

Fig 1: Identifying Clutch And Related Components (Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
