Components With Torque Specifications

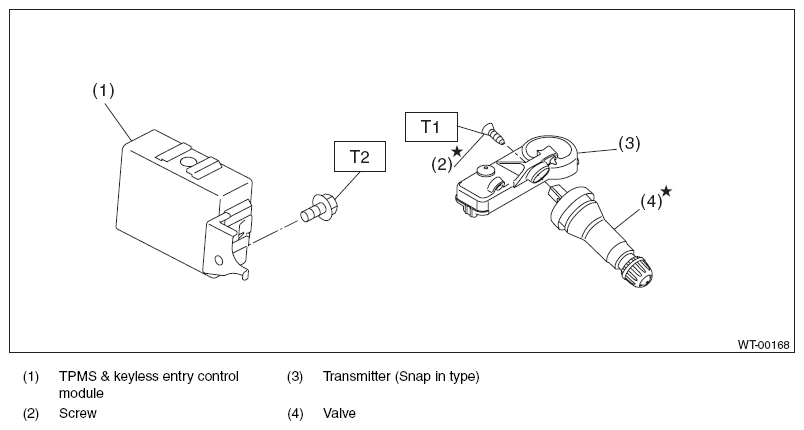

Fig 1: Tire Inflation Pressure Monitor Control Module, Screw, Valve And Transmitter With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.14, 1.0)

T2: 7.5 (0.76, 5.5)
