Rear Axle Housing Bushing

Before assembly, inspect the following items and replace any faulty part with a new one.
- Perform visual check for damage or bend on the trailing link.
- Visually check the bushing for abnormal cracks, fatigue or damage.
Press-fit the bushing using ST and the hydraulic press.
CAUTION: Make sure to press the bushing straight in.

PREPARATION TOOL:

ST1: BUSHING REMOVER (20099FG000)

ST2: INSTALLER & REMOVER (BASE) (20099PA010)

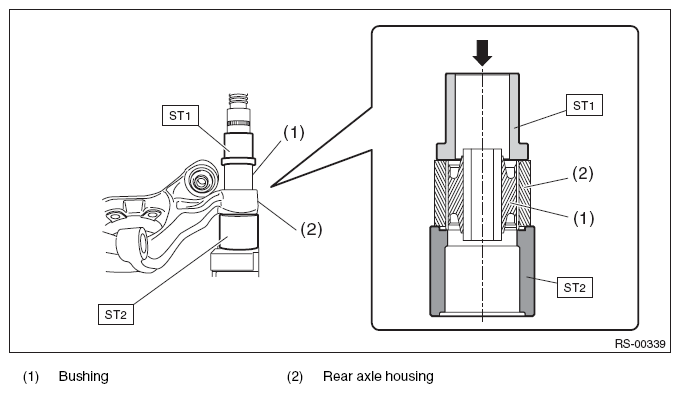

Fig 1: Pressing Bushing Using ST
Courtesy of SUBARU OF AMERICA, INC.
