Airbag Control Module: Removal

CAUTION:
  • Do not disassemble the airbag control module.
  • If the airbag control module is deformed or if the fault occurs by water, replace the airbag control module with a new part.
  • Do not drop the airbag control module.
  • After removal, keep the airbag control module on a dry, clean surface away from moisture, heat and dust.
  1. Turn the ignition switch to OFF.
    CAUTION: Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.
    NOTE: For a model with power seat, remove the console box assembly before disconnecting the battery ground cable.
  2. Remove the console front cover assembly.
    • MT model
      1. Remove the shift knob.
      2. Release the clips and claws, then pull up the console front cover assembly.
        Fig 1: Removing Console Front Cover Assembly (MT Model)
        G06653100Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
      3. Disconnect the harness connector and remove the console front cover assembly.
    • AT model
      1. Remove the select lever knob.
        1. Lower the cover grip AT.
        2. Remove the clamp grip pin, then remove the select lever knob.
      2. Release the clips and claws, then pull up the console front cover assembly.
        Fig 2: Removing Select Lever Knob
        G06653101Courtesy of SUBARU OF AMERICA, INC.
        NOTE: Turn over the front center pocket mat (a) and pull up the console front cover from the slit.
      3. Disconnect the harness connector and remove the console front cover assembly.
  3. Remove the left and right console front side cover assembly.
    1. Remove the screws and release the clips (A) to (D) in order.
    2. Remove the console front side cover assembly by pulling it up.
    Fig 3: Removing Console Front Side Cover Assembly
    G06653102Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the console box assembly.
    1. Move the seat forward, and remove the bolts after detaching the left and right caps.
      NOTE: For a model with power seat, connect the battery ground cable and move the seat. Then, disconnect the battery ground cable again and wait for 60 seconds at least before restarting the work.
    2. Remove the screws, disconnect the harness connector and remove the console box assembly.

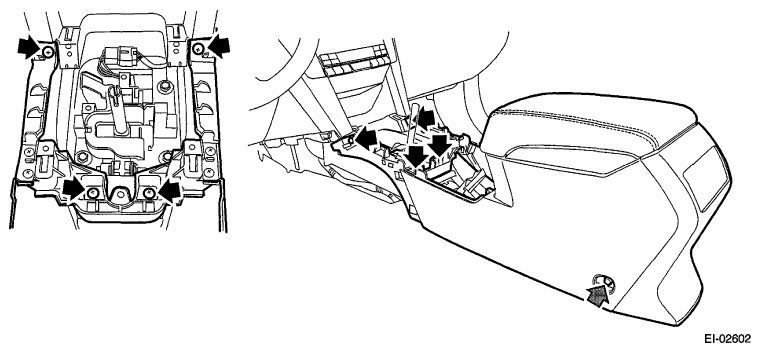

    Fig 4: Locating Console Box Assembly Screws
    G06653103Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the airbag control module.
    1. Disconnect the connector from airbag control module.
    2. Remove the bolt and nuts and remove the airbag control module.
    Fig 5: Locating Airbag Control Module Nuts And Bolts
    G06653159Courtesy of SUBARU OF AMERICA, INC.
