Forward Clutch Assembly And Reduction Driven Gear

WARNING: This page is about a different variant/trim than selected.

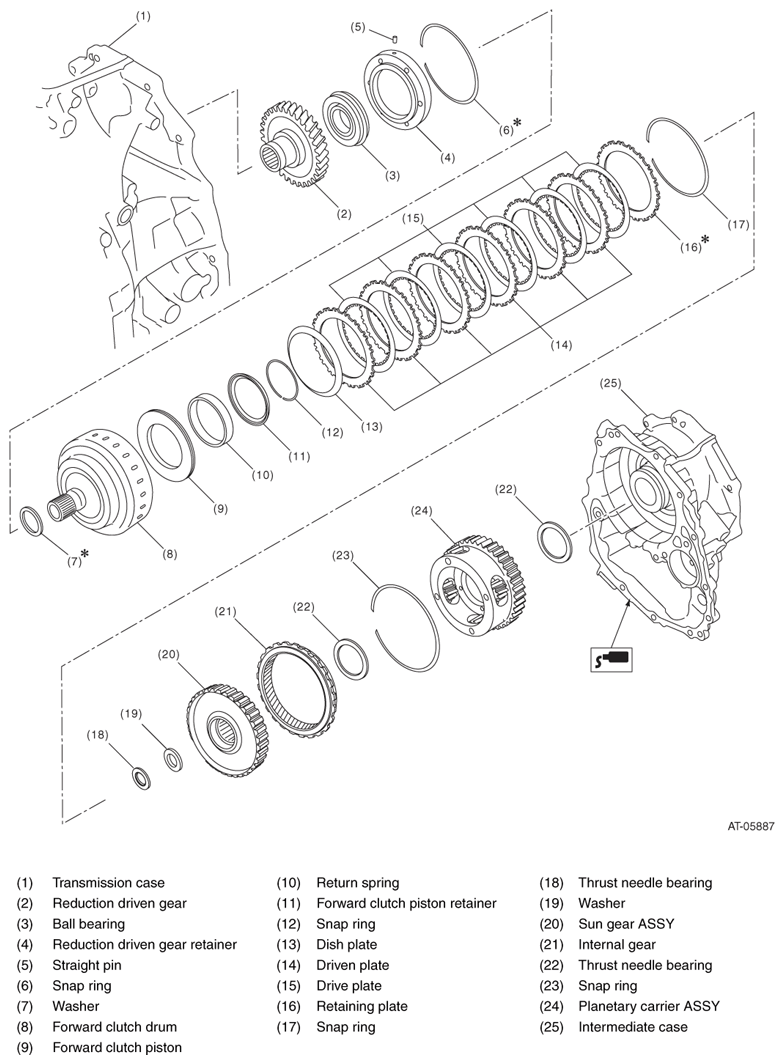

Fig 1: Exploded View Of Forward Clutch Assembly And Reduction Driven Gear
G07913233Courtesy of SUBARU OF AMERICA, INC.
