Front Reduction Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Using the ST, install the ball bearing to front reduction drive gear.
NOTE: Use a new ball bearing.

ST 18651AA000 INSTALLER

Fig 1: Identifying Ball Bearing With Installer On Front Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, install the ball bearing to front reduction drive gear.
NOTE: Use a new ball bearing.

ST1 499757002 PRESS SNAP RING

ST2 398177700 INSTALLER

Fig 2: Identifying Ball Bearing With Press Snap Ring And Installer On Front Reduction Drive Gear
Courtesy of SUBARU OF AMERICA, INC.
Install the seal ring.
NOTE:
- Use a new seal ring.
- When installing the seal ring, do not expand the seal ring too much.
- Install the O-ring when installing the torque converter assembly.

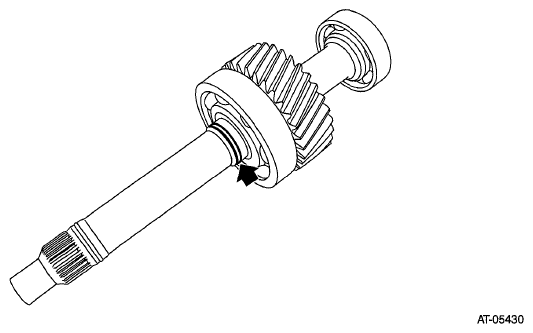

  Fig 3: Locating Seal Ring
  Courtesy of SUBARU OF AMERICA, INC.
