Operating condition: Notes

WARNING: This page is about a different variant/trim than selected.

Radiator fan operates depending on the radiator fan speed related to engine coolant temperature or the radiator fan speed related to A/C compressor load, whichever is higher as a load condition.

Radiator fan speed related to engine coolant temperature

Fig 1: Radiator Fan Speed And Engine Coolant Temperature Characteristics Graph (Radiator Fan Speed Related To Engine Coolant Temperature)
Courtesy of SUBARU OF AMERICA, INC.

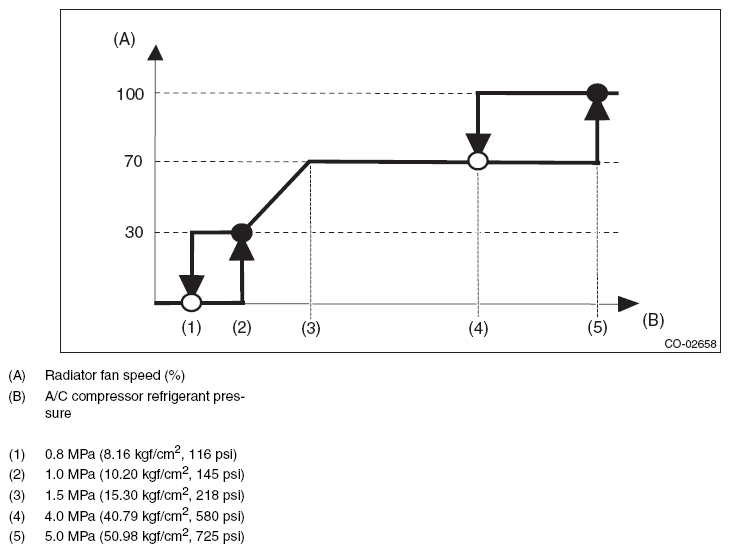

Radiator fan speed related to A/C compressor load

Fig 2: Radiator Fan Speed And Engine Coolant Temperature Characteristics Graph (Radiator Fan Speed Related To A/C Compressor Load)
Courtesy of SUBARU OF AMERICA, INC.
