Section 10 (Automatic Transmission - Diagnostics): Electrical Component Location: Location: Sensor
WARNING:
This page is about a different variant/trim than selected.

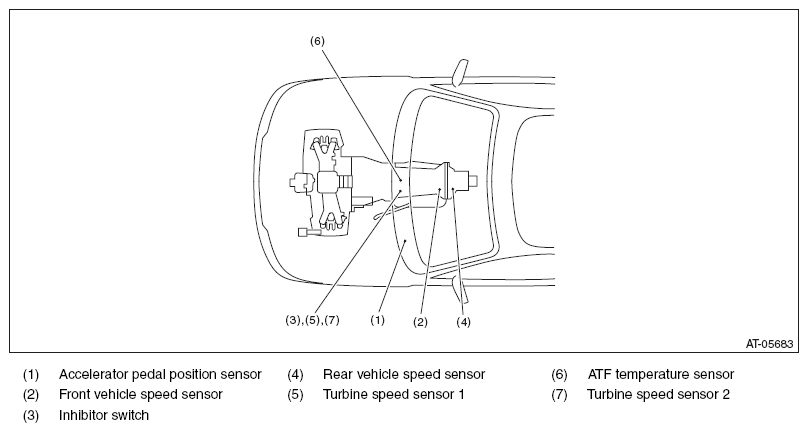

Fig 1: Identifying Sensors (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

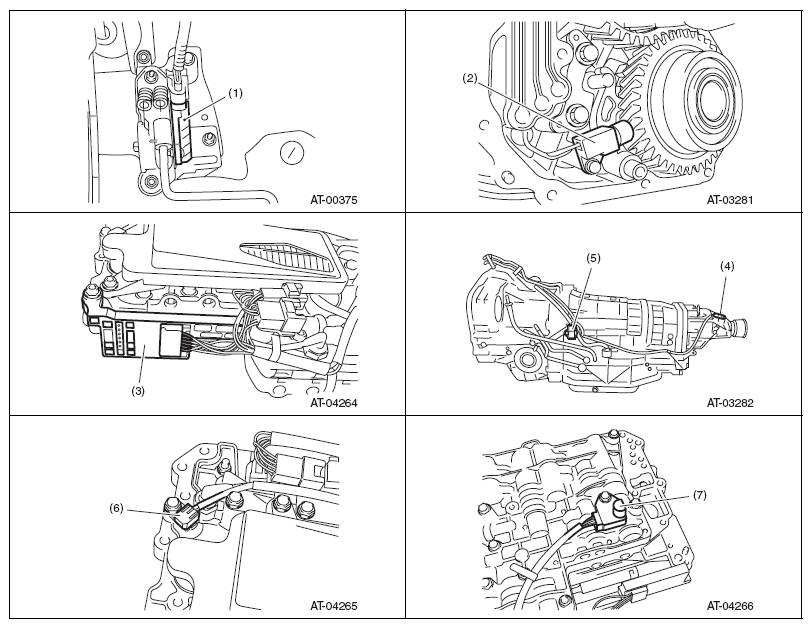

Fig 2: Identifying Sensors (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
