Reservoir Tank: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Drain fluid from the reservoir tank.
Disconnect the hose from reservoir tank.
CAUTION: To prevent foreign matter from entering the hose and pipe, cover the open ends of them with clean cloth.
Remove the bolt and remove the reservoir tank from the body.

CAUTION: Do not separate the reserve tank and bracket.

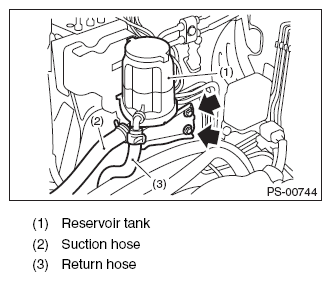

Fig 1: Locating Reservoir Tank Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.
