Inspection Of Clearance
WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

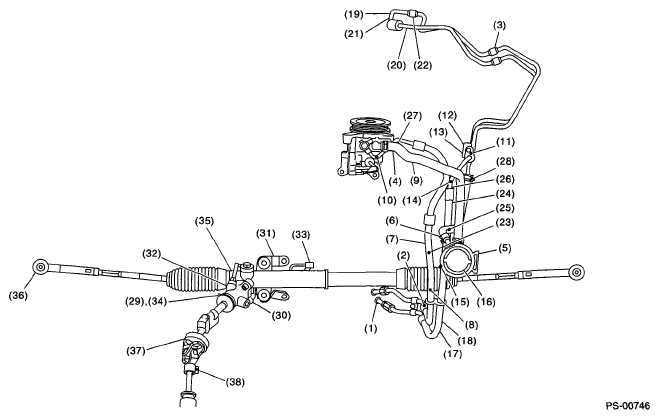

This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.
| Install locations | Minimum allowance mm (in) |
|---|---|
| (1) Crossmember-to-Hose assembly | 10 (0.39) |
| (2) Front frame side-to-Hose assembly | 15 (0.59) |
| (3) Airbag sensor to Cooler pipe assembly | 10 (0.39) |
| (4) Engine cover-to-Suction hose | 10 (0.39) |
| (5) VDCH/U to Reservoir tank bracket | 10 (0.39) |
| (6) Air boots to Hose clip | 15 (0.59) |
| (7) Air boot-to-Hose assembly | 15 (0.59) |
| (8) Protector to Hose assembly | 10 (0.39) |
| (9) Intake manifold to Suction hose | 10 (0.39) |
| (10) Intake manifold to Hose assembly | 10 (0.39) |
| (11) Air cleaner case to Cooler pipe joint block | 5 (0.20) |
| (12) Chain cover to Cooler pipe joint block | 20 (0.78) |
| (13) Oil pipe to Cooler pipe joint block | 20 (0.78) |
| (14) Suction hose to Hose assembly | 10 (0.39) |
| (15) Air boot to Reservoir tank | 10 (0.39) |
| (16) Brake pipe to Reservoir tank | 10 (0.39) |
| (17) Harness to Hose assembly | 10 (0.39) |
| (18) Relay box to Hose assembly | 15 (0.59) |
| (19) Bumper beam to Cooler pipe assembly | 10 (0.39) |
| (20) Radiator bracket to Cooler pipe assembly | 10 (0.39) |
| (21) ATF cooler to Cooler pipe assembly | 10 (0.39) |
| (22) Undercover to Cooler pipe assembly | 10 (0.39) |
| (23) Protector to Hose assembly | 10 (0.39) |
| (24) Protector to Hose assembly | 15 (0.59) |
| (25) Return hose to Hose assembly | 10 (0.39) |
| (26) Air cleaner case to Hose assembly | 10 (0.39) |
| (27) Suction hose to Hose assembly | 10 (0.39) |
| (28) Air cleaner case to Return hose | 3 (0.12) |
| (29) Valve housing to DOJ | 12 (0.47) |
| (30) Valve housing to Crossmember | 1 (0.04) |
| (31) Mount to Crossmember | There must be no contact. |
| (32) Feed tube to Crossmember | 3 (0.12) |
| (33) Elbow to Crossmember | 3 (0.12) |
| (34) Cylinder pipe to Crossmember | 3 (0.12) |
| (35) Feed tube to Exhaust pipe | 18 (0.71) |
| (36) Tie-rod end to Brake dust cover | 2.5 (0.10) |
| (37) Coupling rubber to AT level gauge | 10 (0.39) |
| (38) Yoke to Brake booster | 5 (0.20) |
