Valve Rocker ASSY

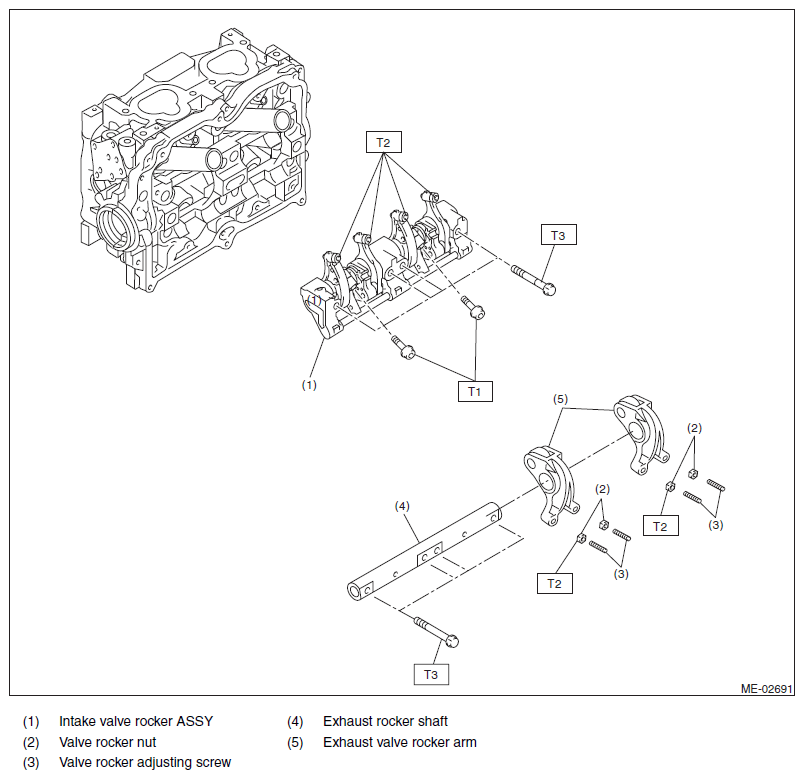

Fig 1: Exploded View Of Valve Rocker Assembly

G07911409

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 9.75 (1.0, 7.2)

T3: 25 (2.5, 18.4)
