Air Cleaner Element: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the power steering oil pressure hose (suction hose) from the clip on the side of air cleaner case (rear).

Fig 2: Identifying Power Steering Oil Pressure Hose (Suction Hose) And Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

Fig 3: Identifying Mass Air Flow And Intake Air Temperature Sensor Connector With Clip
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air cleaner case (rear) and air intake boot assembly.
Remove the clip (B) securing the upper side of air cleaner case.

Fig 4: Identifying Clamp And Clip Of Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.

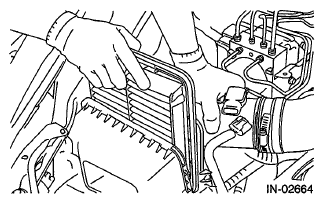

Pull the air cleaner case (rear) backward of the vehicle, and remove the air cleaner element.

Fig 5: Pulling Air Cleaner Case

Courtesy of SUBARU OF AMERICA, INC.
