Oil Pressure System: Wiring Diagram

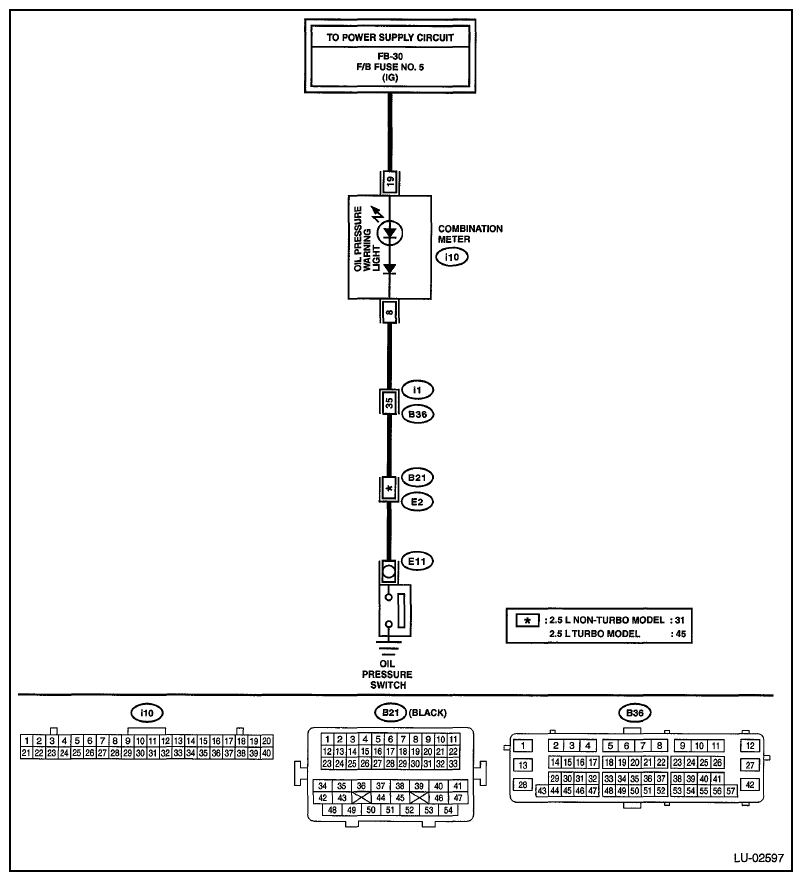

Fig 1: Identifying Oil Pressure System Wiring Diagram
G06648514Courtesy of SUBARU OF AMERICA, INC.
