Oil Level Switch: Wiring Diagram

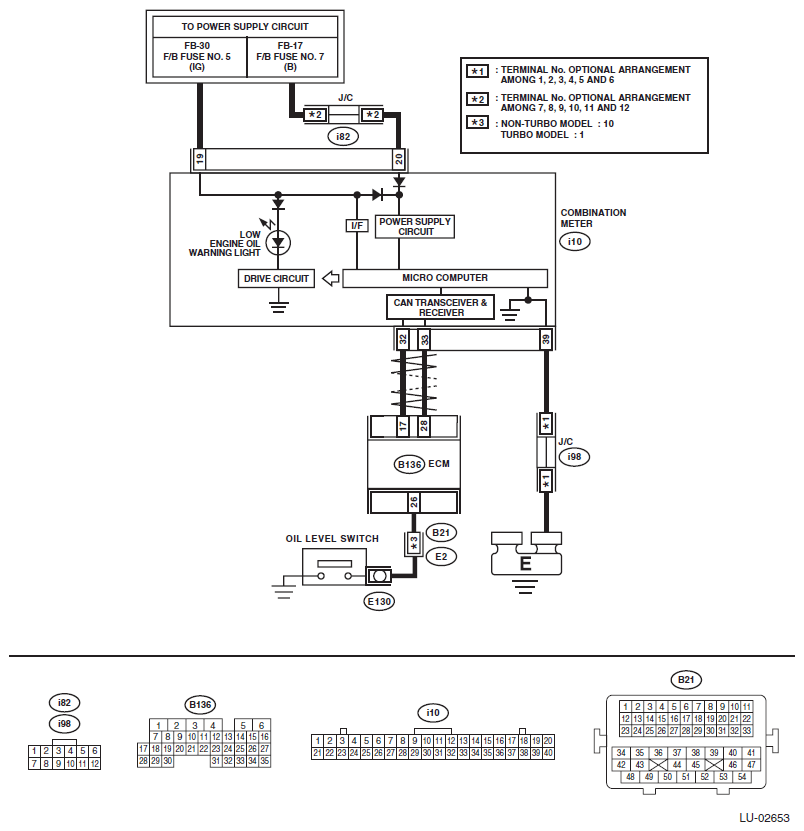

Fig 1: Identifying Oil Level Switch Wiring Diagram

G07910017

Courtesy of SUBARU OF AMERICA, INC.
