Control Module I/O Signal: Wiring Diagram

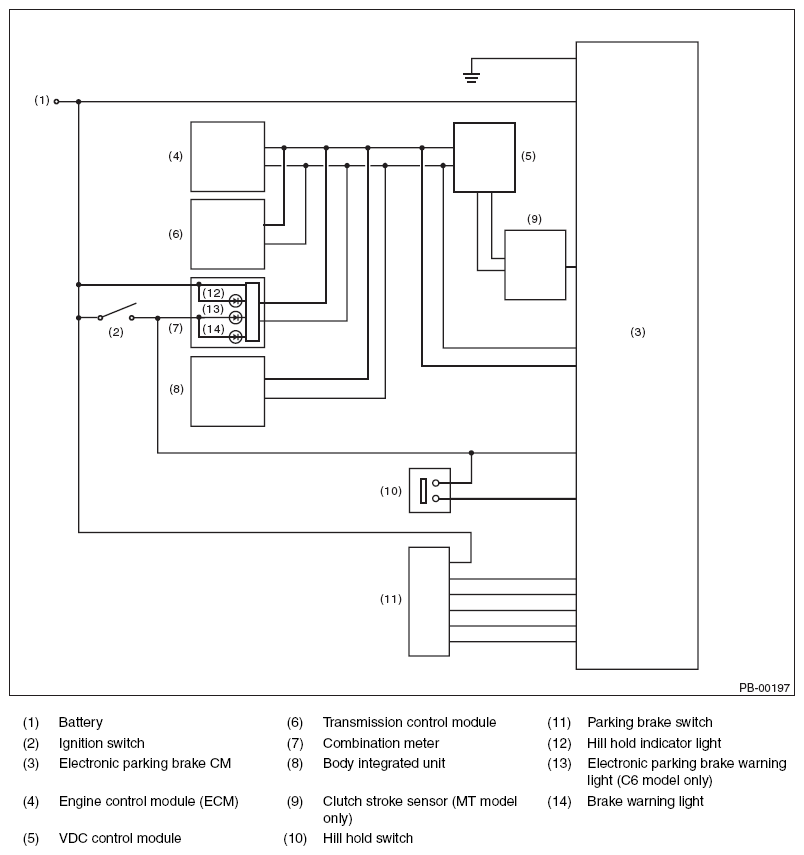

Fig 1: Parking Brake Control Module I/O Signal Wiring Diagram

G07914248

Courtesy of SUBARU OF AMERICA, INC.
