Fuel Flap Opener

Remove the pull handle cover.
1. Open the cover by using a flat tip screwdriver.
2. Remove the screw and remove the pull handle cover.

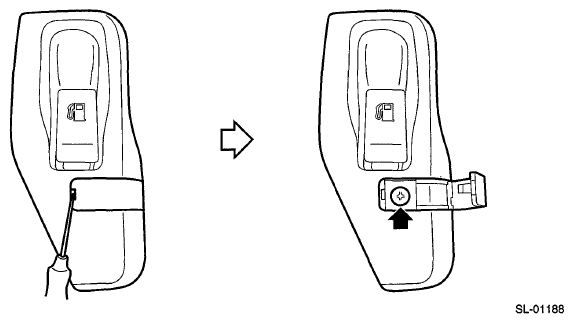

  Fig 1: Removing Pull Handle Cover
  Courtesy of SUBARU OF AMERICA, INC.
Remove the opener handle.
1. Remove the nuts.
2. Remove the cable from opener pull handle.

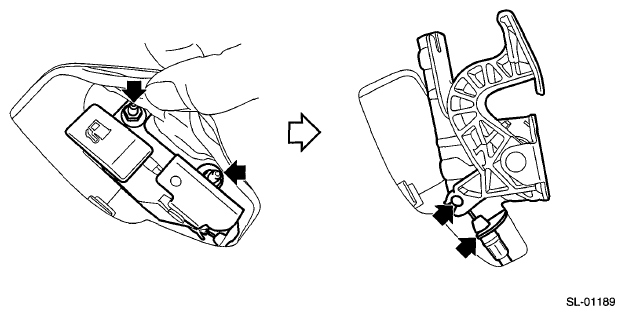

  Fig 2: Removing Cable From Opener Pull Handle
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rear quarter trim RH. (OUTBACK model) Refer to REAR QUARTER TRIM .
Remove the trunk room trim (RH). (Sedan model) Refer to TRUNK ROOM TRIM .
Remove the fuel lock inside the quarter panel.
1. Press the claws of the fuel lock.
2. While keeping the condition in step ( 1), pull the fuel lock to the rearward of the vehicle.

  Fig 3: Removing Fuel Lock
  Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim. Refer to LOWER INNER TRIM .
Remove the cable clip, and remove the cable.
- Sedan model

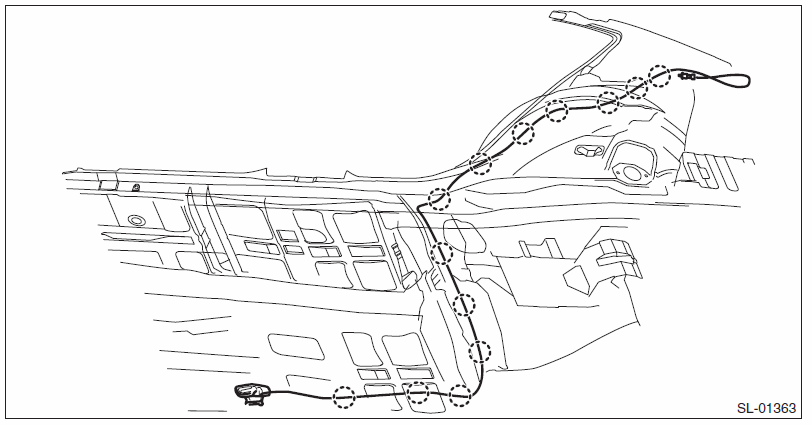

  Fig 4: Identifying Lower Inner Trim Cable And Cable Clip (Sedan Model)
  Courtesy of SUBARU OF AMERICA, INC.
- OUTBACK model

  Fig 5: Identifying Lower Inner Trim Cable And Cable Clip (Outback Model)
  Courtesy of SUBARU OF AMERICA, INC.
