LAN System Diagnostics: Electrical Component Location: Location

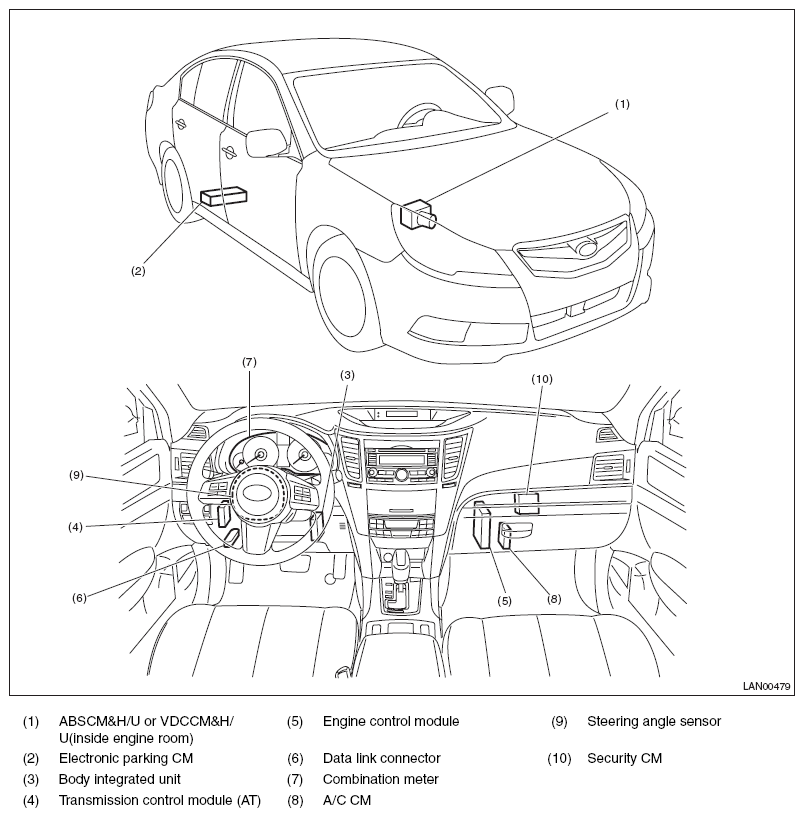

Fig 1: Identifying Electrical Component Location (View 1 Of 2)
G07914620Courtesy of SUBARU OF AMERICA, INC.

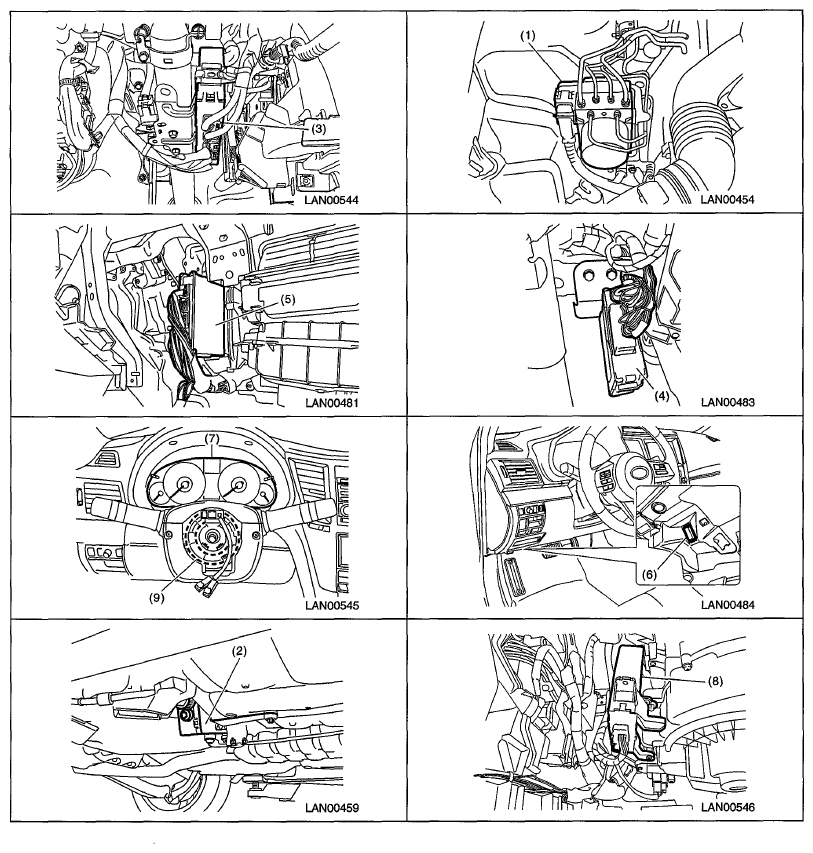

Fig 2: Identifying Electrical Component Location (View 2 Of 2)
G06654249Courtesy of SUBARU OF AMERICA, INC.
