Transfer Case

  1. Install the shift link assembly to the transfer case. Refer to Shift Link Assembly  .
  2. Install the interlock plate to the transfer case.
    NOTE:
    • Use a new bolt and gasket.
    • Before installing the interlock plate, clean the screw threads.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

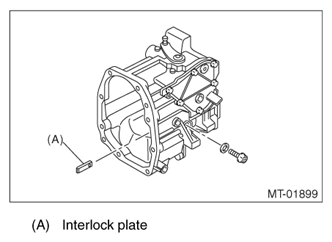

    Fig 1: Identifying Interlock Plate
    G07915099Courtesy of SUBARU OF AMERICA, INC.
