Judgment time detail

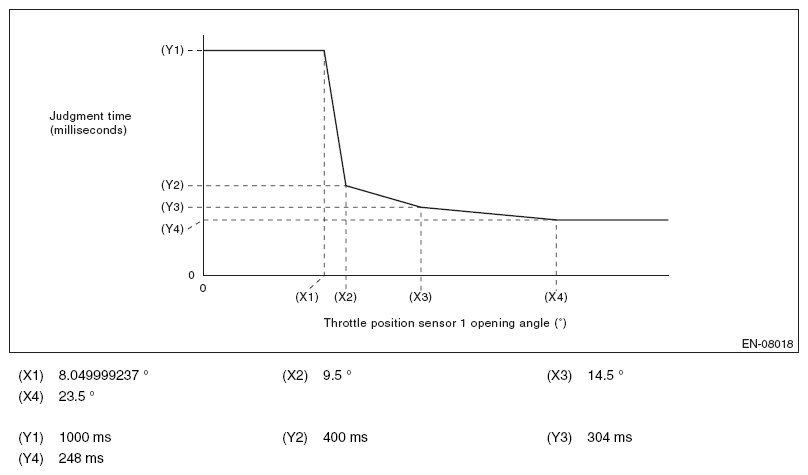

Fig 1: Throttle Actuator Control - Judgment Timing Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Judgment time is constantly 1000 ms with Actual opening angle ≤ Target opening angle.

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
