Home >> Subaru >> 2012 >> Outback Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO) >> Diagnostic Trouble Code (DTC) Detecting Criteria >> DTC P0638 Throttle Actuator Control Range/Performance (Bank 1) >> Diagnostic Method >> Details of Judgment Value

Details of Judgment Value

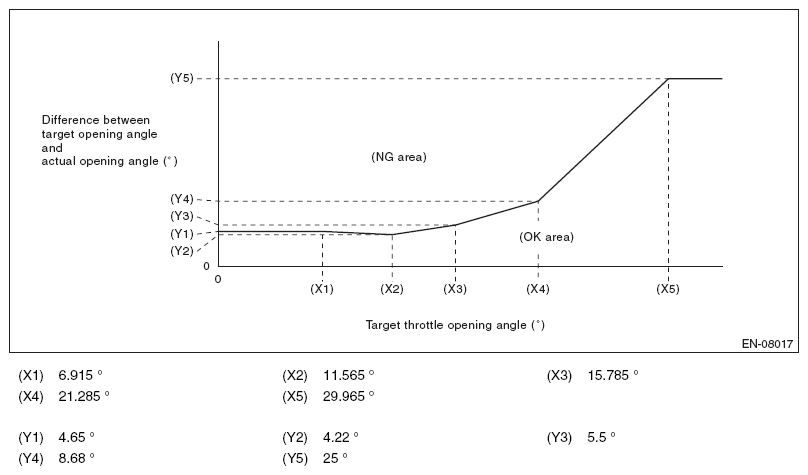

Fig 1: Throttle Actuator Control - Judgment Value Chart
G07911769Courtesy of SUBARU OF AMERICA, INC.
