Component Description

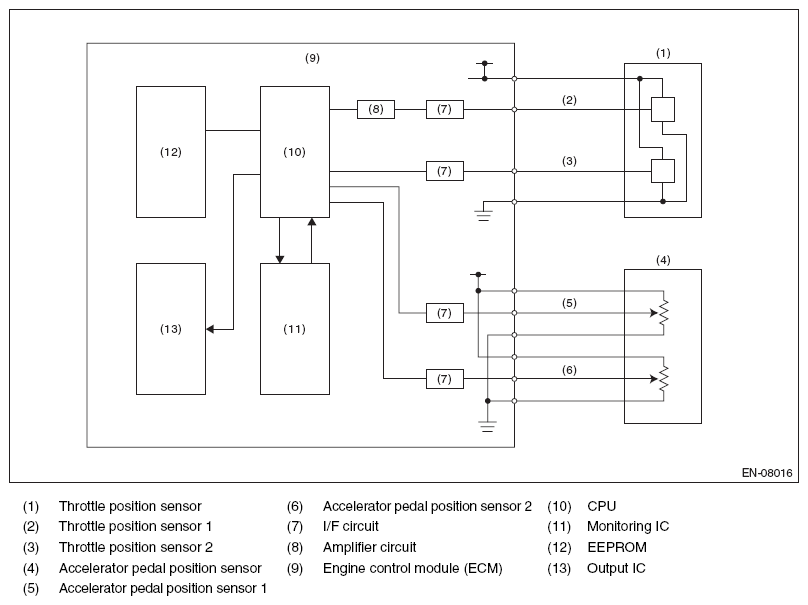

Fig 1: Throttle Control System Circuit Diagram
G07911767Courtesy of SUBARU OF AMERICA, INC.
