Purge control solenoid valve Open Fixation

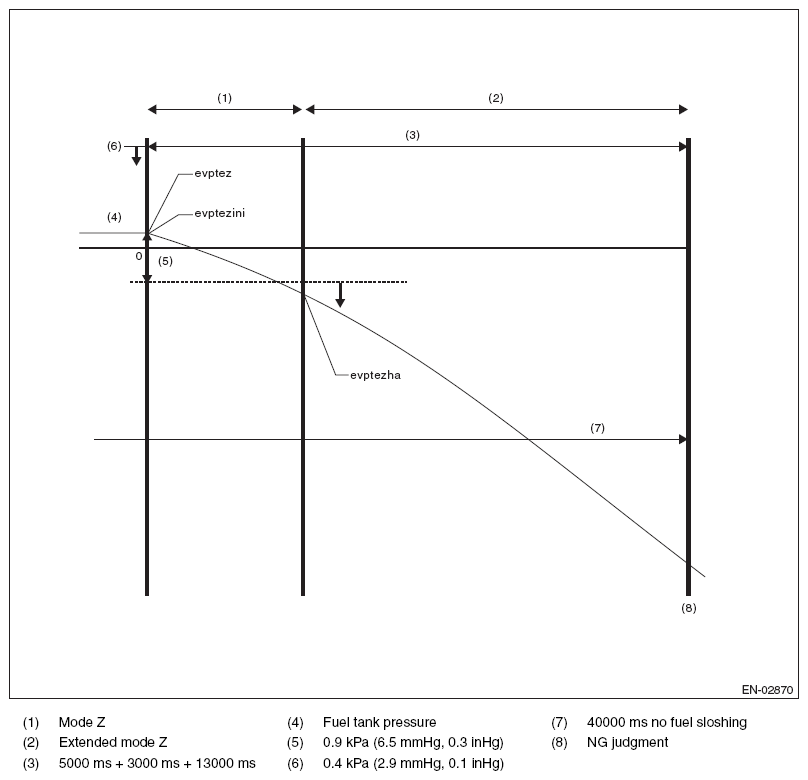

Fig 1: Purge Control Solenoid Valve Open Fixation Graph

Courtesy of SUBARU OF AMERICA, INC.

• evptezini ≤ 0.4 kPa (2.9 mmHg, 0.1 inHg)
• evptez - evptezha > 0.9 kPa (6.5 mmHg, 0.3 inHg)
• No fuel sloshing with value from Map 6 or more lasts for 40000 ms.

Judge as abnormal when all are established.
