Cruise Control Command Switch Connector End View
Cruise Control Command Switch Connector End View

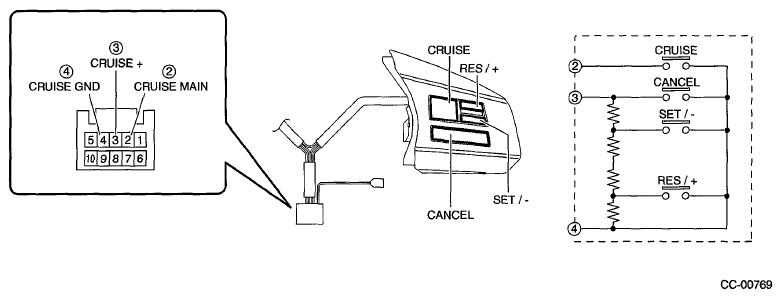

Fig 1: Cruise Control Command Switch Connector End View
Courtesy of SUBARU OF AMERICA, INC.
