Conventional Communication

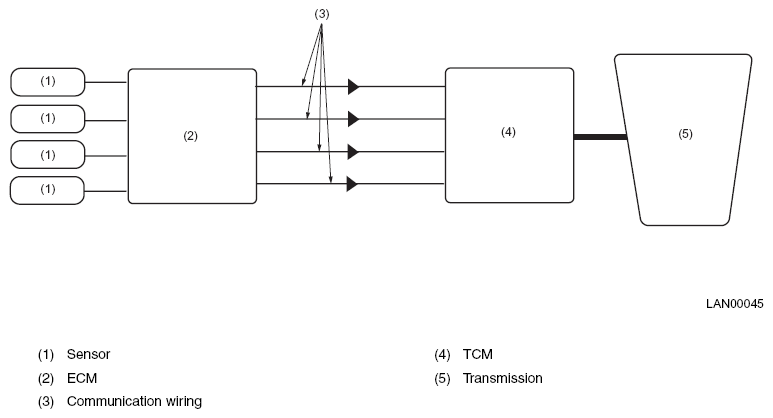

Fig 1: Conventional Communication Diagram
G08260580Courtesy of SUBARU OF AMERICA, INC.
NOTE: Conventional data communication needs as many data transmission lines as sensors used. (parallel signals)
