Front Hood Lock And Remote Openers

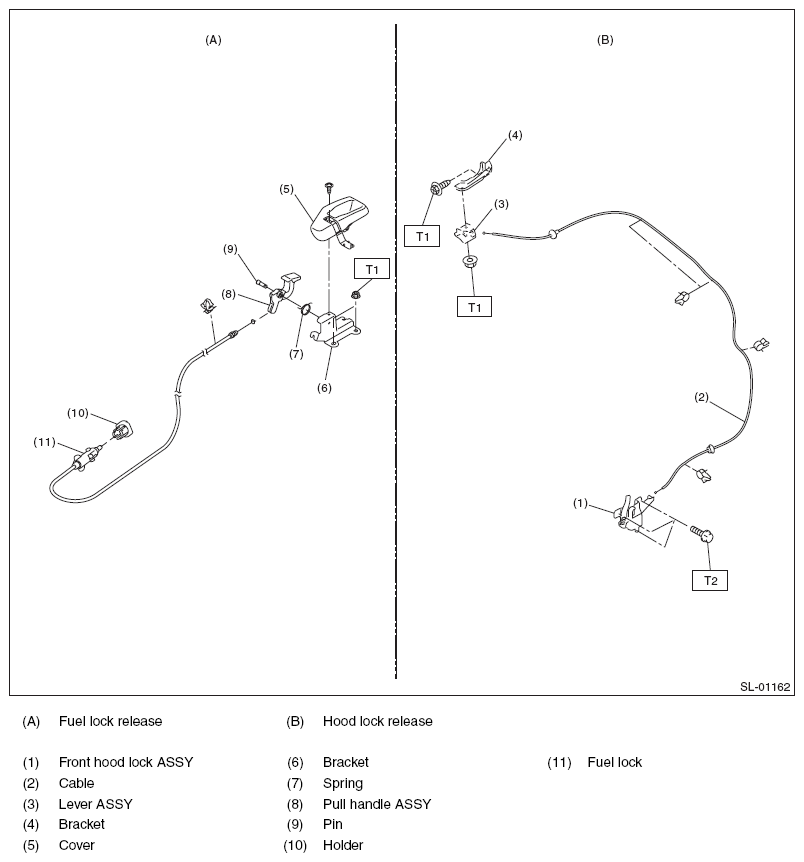

Fig 1: Front Hood Lock And Remote Openers Replacement Components With Torque Specifications
G07916519Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 33 (3.36, 24.3)
