Air Breather Hose: Removal

  1. Remove the air intake boot assembly. Refer to AIR INTAKE BOOT IN(H4SO)-8, REMOVAL, Air Intake Boot.
  2. Remove the two air breather hoses.

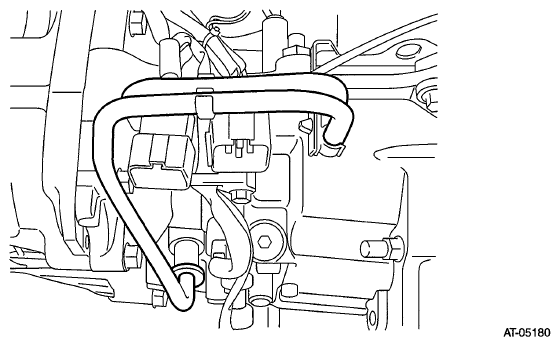

    Fig 1: Identifying Air Breather Hoses
    G06654490Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil cap.
    Fig 2: Identifying Oil Cap
    G06654491Courtesy of SUBARU OF AMERICA, INC.
