Roll Connector: Installation

1. Before attaching a new roll connector, apply a thin coat of grease contained in the connector onto the areas shown by the arrows.

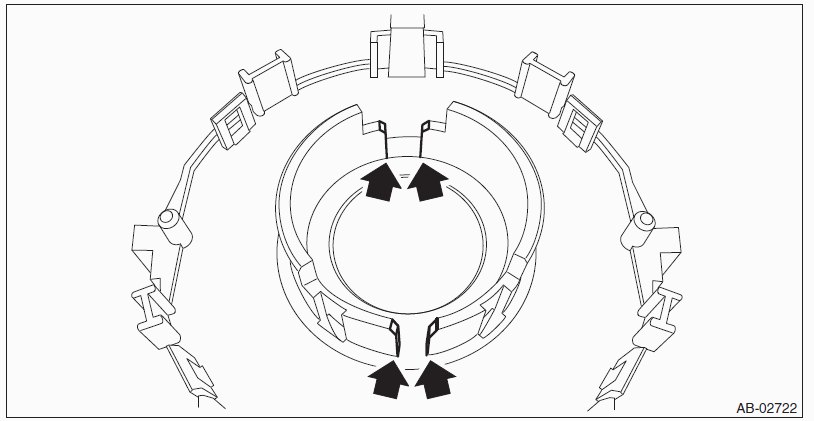

   Fig 1: Identifying Areas To Apply Grease

   Courtesy of SUBARU OF AMERICA, INC.
2. Install each part in the reverse order of removal.

   Tightening torque:

   Airbag module: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

3. Before installing steering wheel, be sure to adjust the direction of roll connector with steering. Refer to ROLL CONNECTOR  .

Tightening torque:

Steering wheel: 39 N.m (4.0 kgf-m, 28.8 ft-lb)

Clearance between column cover and steering wheel: 2 - 4 mm (0.08 - 0.16 in)
