Rear Trailing Link Bushing

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Using the ST and a pipe, press the bushing out.

ST 20099PA010 INSTALLER & REMOVER

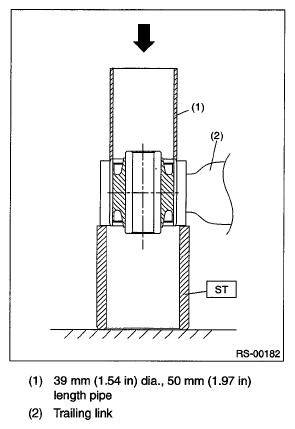

Fig 1: Pressing Bushing Using ST (20099PA010)
G06343219Courtesy of SUBARU OF AMERICA, INC.
