Engine Control Systems
>>
Fuel Injection Fuel Systems (H4DOTC)
>>
Camshaft Position Sensor
>>
Removal
>>
Exhaust Side
Exhaust Side
Disconnect the ground cable from battery.

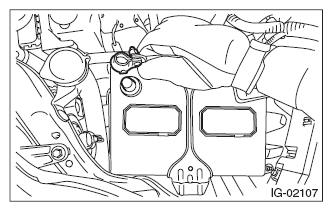

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. Refer to
FRONT UNDER COVER
.
Disconnect the connector from the camshaft position sensor, and remove the camshaft position sensor.
RH side
Fig 2: Locating Camshaft Position Sensor Connector (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
LH side
Fig 3: Locating Camshaft Position Sensor Connector (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
