Non-Turbo Models

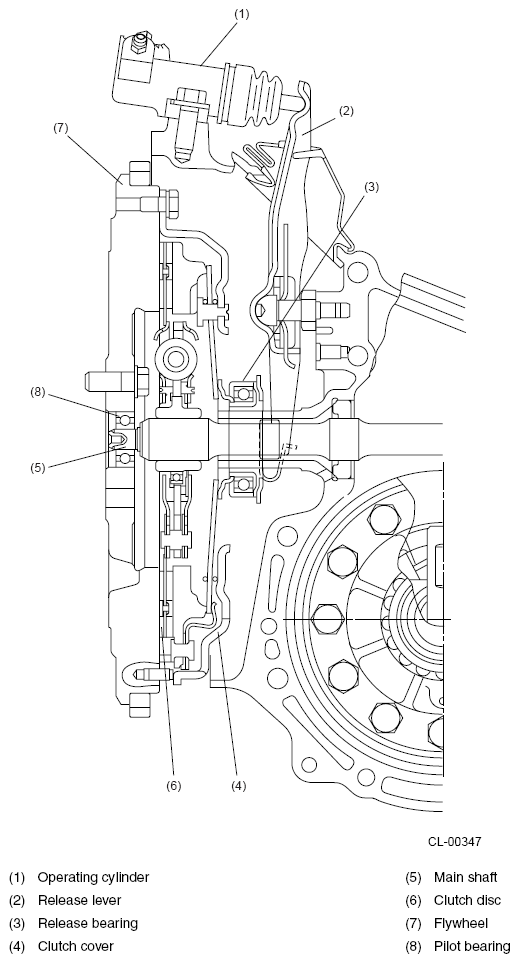

Fig 1: Identifying Clutch And Related Components (Non-Turbo Models)

G08260881

Courtesy of SUBARU OF AMERICA, INC.
