Transmitter (Tire Inflation Pressure Sensor)

CAUTION: Use the new transmitter assembly or replace the new valve and screw, when installing.

Replace the valve and screw with a new part when reusing transmitter.

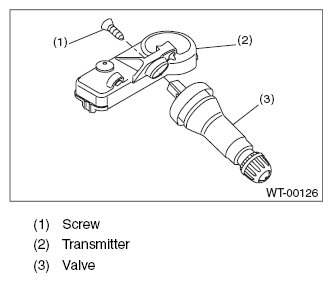

Fig 1: Identifying Screw, Transmitter And Valve
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

1.4 N.m (0.14 kgf-m, 1.0 ft-lb)
Install the transmitter to the wheel by aligning it with valve hole.
NOTE: When using the jig that pulls the valve cap by hooking its neck part, use another short-type cap.
Install the tires to wheels.
CAUTION:
- Use a tire changer when installing tire to wheel.
- To prevent damaging the transmitter, set the tire changer boom in the position as shown in the figure.

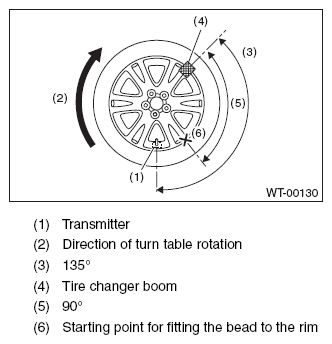

  Fig 2: Identifying Tire Changer Boom Setting Position
  Courtesy of SUBARU OF AMERICA, INC.
Install the wheels to vehicle. Refer to , INSTALLATION .
Register the transmitter ID to the TPMS & keyless control module. Refer to REGISTER TRANSMITTER (ID) .
